Steel Plant Baghouse Dust Collector PLC Reverse Pulse Jet Bag Filter

  • 1
  • 2

Brand Name : XINCHEN

Model Number : XMC Pulse Bag Dust Collector

Certification : SGS ISO CE

Place of Origin : China (Mainland)

MOQ : Negotiate

Price : Negitionable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 Set/Sets per Month

Delivery Time : 30 days after receiving down payment

Packaging Details : Plastic film inner packing, export special wooden box outer packing.

Name : XMC Pulse Bag Dust Collector

air volume : 20000-24000m3/h

filting area : 350m2

filting airspeed : 0.95-1.14m/min

Filter bags : 350 bags

Pulse valve No. (piece) : 25 piece

Applicable Industries : Manufacturing Plant

Core Components : PLC, Motor

Contact Now

20000-24000m3/h Pulse Bag Dust Collector



Product principle:



1.Dust removal process:

Dust-laden gas enters the dust collector through the air inlet. The dust of the larger particles directly falls into the ash hopper. The gas containing the particulate dust passes through the filter bag. The dust is trapped on the outer surface of the filter bag, and the gas is purified and discharged by the induced draft fan. Into the atmosphere.



2.Ash removal process:

As the filtration work continues, dust particles adhering to the outer surface of the filter bag increase, and the dust collector operation resistance increases. The switching valve of a filter unit closes, the filter unit stops working, and the reverse-blowing compressed air reversely enters the filter unit. The dust on the outer surface of the filter bag is dropped, and then the valve plate is switched to open, the filter unit is again operated, and the dust is turned to the next filter unit. The entire cleaning process alternates with each filter unit.



Techinal parameters





 Type

XMC70-5

XMC70-6

XMC70-7

XMC70-8

Wind Volume (m3/h)

　20000-24000

24000-29000

29000-36000

36000-40000

Filtration area (m2)

350

420

490

560

Filtering Wind speed(m/min)

0.95-1.14

1.95-1.15

1.0-1.20

1.1-1.30

Filter bags(bag)

350

420

490

560

Resistance(Pa)

1200　　　

Density of inlet(g/m3n)

1300

Density of outlet(mg/m3n)

≤50

Injection Pressure (MPa)

≤0.5-0.7

Pressure(Pa)

≤9000

Pulse valve No. (piece)

25

30

35

40

Air consumption



(m3/min)

2.09

2.08

2.10

2.10

Insulation area (m2)

90

98

110

122

Weight( kg)

12600

14500

16800

19500

Power(KW)

5.2

5.2

8.1

9.7



Equipment advantages



1. The cleaning intensity is higher, and the air inlet and outlet are evenly distributed.
2. The dust collection efficiency is higher, up to 99.8%.
3. The service life of the filter bag is effectively extended.

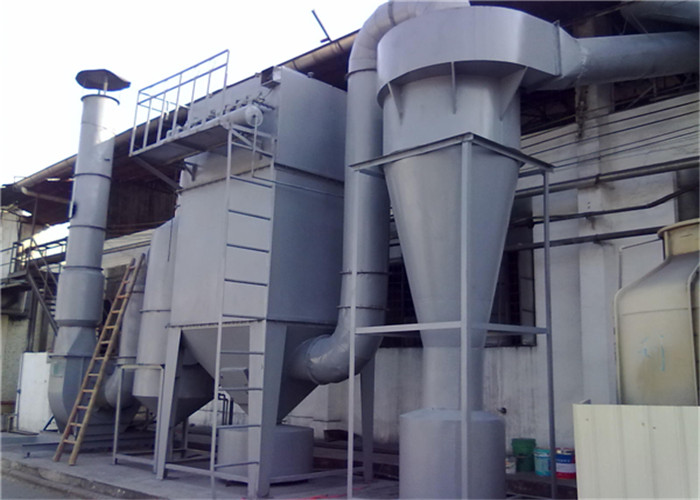

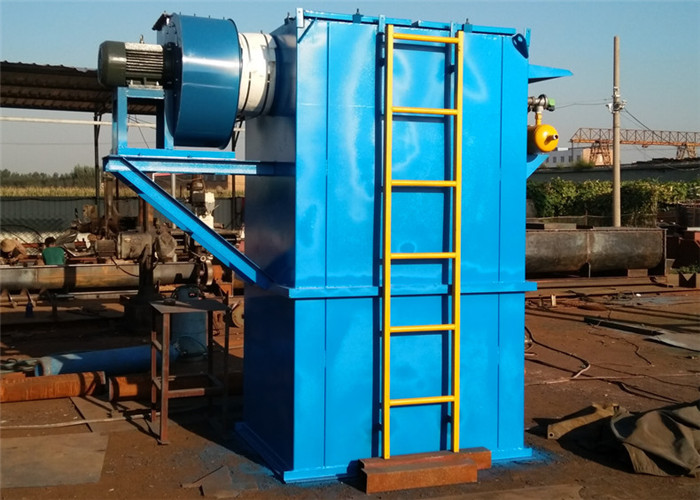

Pictures



Steel Plant Baghouse Dust Collector PLC Reverse Pulse Jet Bag Filter

Steel Plant Baghouse Dust Collector PLC Reverse Pulse Jet Bag Filter
